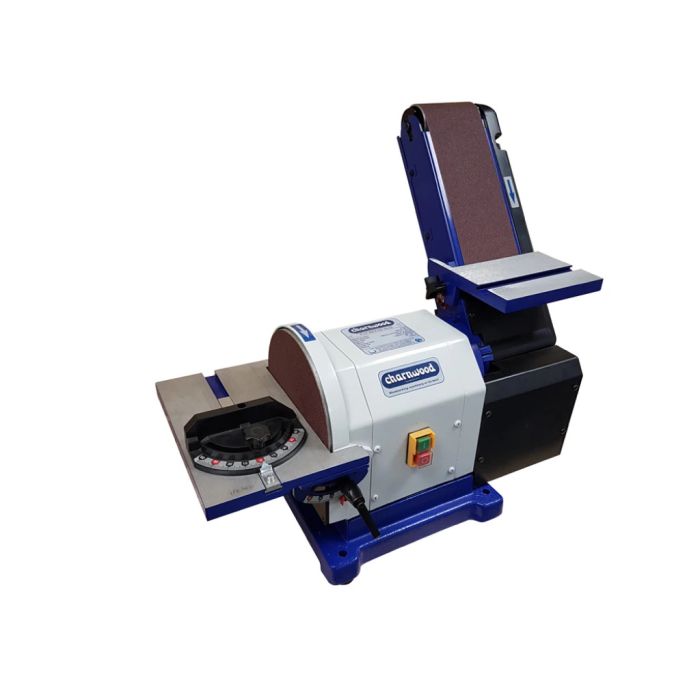

Charnwood BD48 Belt & Disc Sander, 4″ x 8″ with Integral Dust Collection
Upgrade your workshop with the Charnwood BD48 500W belt and disc sander. Features a quiet induction motor and integral dust collection. 5-year guarantee.
- Express delivery express Mon to Fri, order before 14:00
- Click and collect
- 30 day returns
Secure checkout
Stop wrestling with messy workshops and underpowered benchtop gear. The Charnwood BD48 Belt & Disc Sander is a heavy duty 2 in 1 machine built for tradespeople and serious DIYers who demand precision and clean air on every job. Powered by a 500w quiet induction motor linked directly to the motor shaft, this robust tool combines an 8″ diameter sanding disc and a 4″ x 36″ sanding belt to handle everything from squaring edges to sharpening tools. Best of all, an integrated powered dust collection fan and dust collection bag actively pull debris away from your work area so you can keep moving.
Stability is built right in via a cast iron base with extended legs, sitting securely on 4 rubber feet or bolted to a work bench using 4 mounting points. Whether you are running the belt horizontally, vertically, or locked at an angle in between, or utilizing the open drum end for curved edges cut on a bandsaw or scroll saw, this hobby-rated machine delivers total control backed by a 5 years product guarantee.
Features
- 500w quiet induction motor
- 8″ diameter sanding disc
- 4″ x 36″ sanding belt
- Vertical or horizontal use
- 2 tilting work tables with mitre guide
- Powered dust collection fan
- Dust collection bag
- Cast iron base with extended legs for increased stability
- Sits on 4 rubber feet or secures to a work bench using 4 mounting points provided
- Direct drive from motor shaft, updating and simplifying traditional belt driven design
- Aluminium work table with 45 degree tilt, secured on both sides, with T slot for mitre guide
- Sanding belt can be locked at an angle in between for sharpening tools, with dedicated work table, tilt function, and T slot
- Open drum end of the belt for sanding curved edges cut on a bandsaw or scroll saw
- Quick release tension lever and tracking adjustment for the sanding belt
- Dust collection bag with quick release clamp and zip for emptying
- Optional use with adapter 100/58RC to connect to your own dust extractor
Specifications
| Disc Diameter | 200mm (8″) |
|---|---|
| Disc Speed | 2850rpm |
| Disc Work Table | 265mm x 150mm |
| Disc Work Table T Slot | 16mm / 20mm |
| Table Tilt | 90 to 45 degrees |
| Belt Size | 100mm x 915mm (4″ x 36″) |
| Belt Speed | 550m/min |
| Belt Work Table | 170mm x 130mm |
| Belt Work table T Slot | 16mm / 20mm |
| Motor (Induction) | 240v, 50hz 500w (0.67hp) |
| Dust Extraction Outlet | 63mm OD, 58mm ID |
| Overall Dimensions (WxDxH) | 570mm x 600mm x 370mm |
| Shipping Dimensions | 590mm x 520mm x 380mm |
| Assembly Time Required | 5 Minutes |
| Weight | 23kg |
| Rating | Hobby |
| Product Guarantee | 5 Years |
In the box
- 1 x 80 grit sanding belt
- 1 x 80 grit self adhesive sanding disc
- Dust bag
- 1.8m power cable
- UK 3 pin plug
| Brand | Charnwood |
|---|
