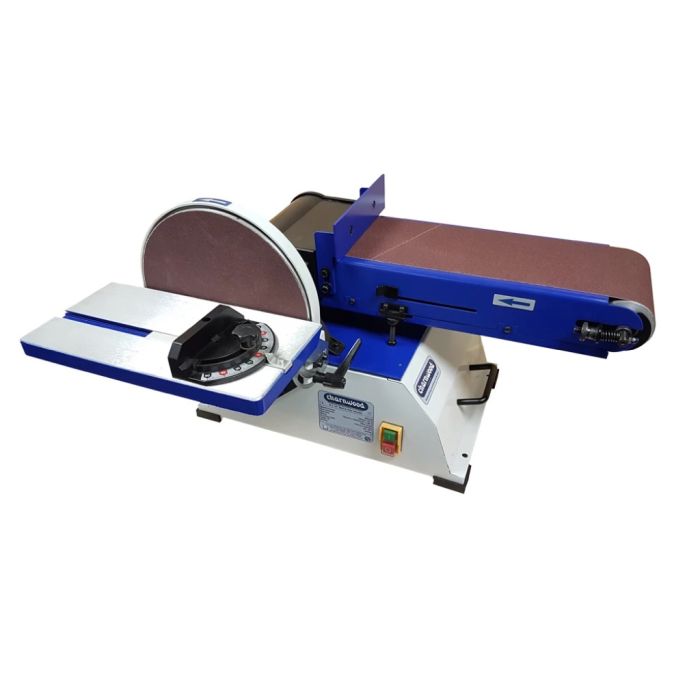

Charnwood BD610 Belt & Disc Sander, 6″ x 10″
A heavy duty workshop sander, with the traditional combination of belt and disc, driven via belt by a quiet 1hp induction motor.
The large diameter disc is fitted with a sturdy aluminium table which is secured on both sides. Radiused guides allow the table to tilt to 45 degrees and be accurately locked at any angle. The table also has a T slot for the mitre guide, which is adjustable to 60 degrees each way.
A sanding belt of this size would most commonly be used in the horizontal position, however it can be moved into the vertical position when required. The belt has a back stop fence with a removable plate, allowing the user to make their own plate to suit any application they have.
The open end of the sanding belt can be used for finishing curved shapes and edges.
When the time comes to replace the sanding belt there is a quick release tension lever and fine tracking adjustment to balance the new belt.
Given that there may be times when you need to move this machine off the work bench, the design incorporates a pair of carry handles.
Charnwood BD610 Specification
Disc Diameter 250mm (10″)
Disc Speed 2850rpm
Work Table Size 330mm x 170mm
Work Table Tilt 90 to 45 degrees
Work Table T Slot 16mm / 20mm
Belt Size 150mm x 1220mm (6″ x 48″)
Belt Speed 550m/min
Motor (Induction) 750w (1hp) 240v, 50hz
Dust Extraction Outlet 50mm OD / 45mm ID
Overall Dimensions (WxDxH) 770mm x 570mm x 400mm
Shipping Dimensions 740mm x 460mm x 470mm
Weight 31kg
Assembly Time Required 10 Minutes
Rating Hobby
Product Guarantee 5 Years
To connect this machine to a dust extractor using 100mm diameter hose, use adapter 100/58RC.
We recommend wearing a face mask or respirator during all sanding operations, even if a dust extraction system is in place. Don’t take chances with your health.
A single dust collection outlet gives efficient extraction, from both the disc and belt, when connected to a suitable vacuum or extractor.
The sander sits on 4 rubber feet or can be secured to a work bench using the 4 mounting points provided.
Supplied with mitre guide, 1 x 80 grit sanding belt, 1 x 80 grit self adhesive sanding disc, 1.75m power cable and UK 3 pin plug.
- Express delivery express Mon to Fri, order before 14:00
- Click and collect
- 30 day returns
Secure checkout
Stop wrestling with awkward stock and uneven edges. The Charnwood BD610 6″ x 10″ Belt & Disc Sander brings industrial-grade timber prep straight to your workbench without taking up the whole shop. Powered by a quiet 750w (1hp) 240v, 50hz induction motor running via a belt, this heavy-duty unit handles everything from rapid stock removal to fine curved finishing. Whether you are switching the 150mm x 1220mm (6″ x 48″) belt from a horizontal setup to a vertical position, or tilting the sturdy aluminium work table through 90 to 45 degrees, every adjustment is locked solid and dialed in with a quick release tension lever and fine tracking adjustment.
Designed for real-world workshop conditions, it features built-in carry handles, a single dust collection outlet, and sits steady on 4 rubber feet or bolts directly to your bench using 4 mounting points. Backed by a 5 Years product guarantee, it is built to last.
Features
- Heavy duty workshop sander powered by a quiet 1hp induction motor driven via belt
- Large diameter 250mm (10″) disc fitted with a sturdy aluminium table secured on both sides
- Radiused guides allow the table to tilt to 45 degrees and lock at any angle
- Table features a T slot for the mitre guide, adjustable to 60 degrees each way
- Sanding belt can be used horizontally or moved into the vertical position
- Back stop fence with a removable plate allowing custom plates for any application
- Open end of the sanding belt can be used for finishing curved shapes and edges
- Quick release tension lever and fine tracking adjustment for belt replacement
- Design incorporates a pair of carry handles for easy relocation off the workbench
- Single dust collection outlet gives efficient extraction from both disc and belt
- Connect to a dust extractor using 100mm diameter hose with adapter 100/58RC
- Sits on 4 rubber feet or secures to a workbench using 4 mounting points
Specifications
| Disc Diameter | 250mm (10″) |
|---|---|
| Disc Speed | 2850rpm |
| Work Table Size | 330mm x 170mm |
| Work Table Tilt | 90 to 45 degrees |
| Work Table T Slot | 16mm / 20mm |
| Belt Size | 150mm x 1220mm (6″ x 48″) |
| Belt Speed | 550m/min |
| Motor (Induction) | 750w (1hp) 240v, 50hz |
| Dust Extraction Outlet | 50mm OD / 45mm ID |
| Overall Dimensions (WxDxH) | 770mm x 570mm x 400mm |
| Shipping Dimensions | 740mm x 460mm x 470mm |
| Weight | 31kg |
| Assembly Time Required | 10 Minutes |
| Rating | Hobby |
| Product Guarantee | 5 Years |
| SKU | 5060486046935 |
In the box
- Mitre guide
- 1 x 80 grit sanding belt
- 1 x 80 grit self adhesive sanding disc
- 1.75m power cable
- UK 3 pin plug
| Brand | Charnwood |
|---|
