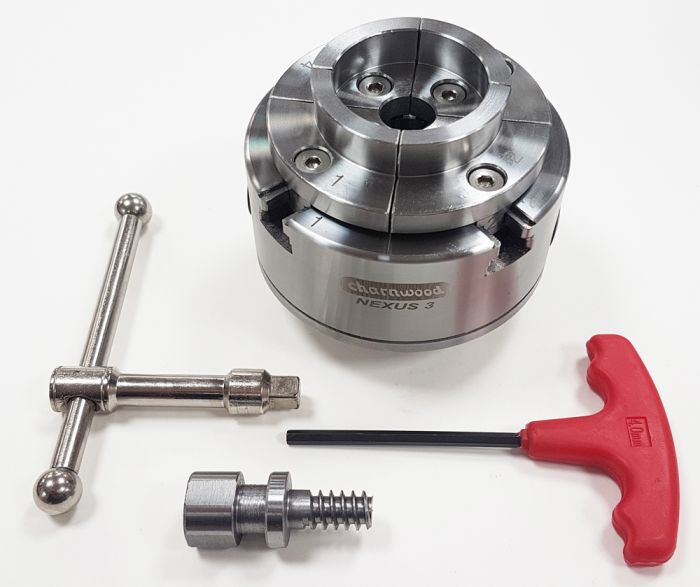

Charnwood (NEXUS3R) 4 Jaw Geared Scroll Chuck - 95mm Diameter

Upgrade your woodturning setup with the Charnwood NEXUS3R 4 Jaw Geared Scroll Chuck, built for trade and DIY woodturners using midi-sized lathes and upwards. Based on the best-selling Viper range, this 95mm diameter high-precision chuck features a fully enclosed body that keeps out dust and chips to protect the internal gear mechanism. It is ideal if you already own Supernova, G3 Nova, Robert Sorby Patriot, Record Power SC3, or Record Power SC4 chucks, as its jaw mounting is fully compatible with them, letting you continue using your existing jaws (note that Supernova, G3 Nova, Robert Sorby Patriot, Record Power SC3, and Record Power SC4 require N3JS Screws).

Engineered for simple one-handed operation via an 8mm square drive, this self-centring scroll chuck includes locking screws so you can safely use it on a lathe with reverse direction when mounted directly onto an M33 x 3.5 spindle thread conforming to DIN800 Standard or Jet Type T38 design. The standard dovetail jaws let you grip workpieces both internally and externally, with a wood screw included for initial bowl blank mounting.

Features

• Product Code: NEXUS3R
• 4 Jaw Scroll Chuck with locking screws for using on a lathe with reverse direction
• Jaw mounting compatible with Supernova, G3 Nova, and Robert Sorby Patriot Jaws
• Jaws for the Nexus3 are also compatible with Supernova (Requires N3JS Screws), G3 Nova (Requires N3JS Screws), Robert Sorby Patriot (Requires N3JS Screws), Record Power SC3 (Requires N3JS Screws), and Record Power SC4 (Requires N3JS Screws)
• Based on the best selling Viper range
• 4″ sized scroll chuck with geared mechanism for simple one handed operation
• Self centring, high precision design
• Fully enclosed body prevents dust and chips from getting inside and plugging up the gear mechanism teeth
• Ideal for Midi sized lathes and upwards
• Standard dovetail jaws can grip the workpiece both internally or externally
• Fits directly onto lathes with headstock thread size of M33 x 3.5tpi, with optional inserts required for other thread sizes
• Includes a wood screw which clamps into the centre of the chuck for initial mounting of bowl blanks
• Extensive range of optional jaws and accessories available
• Locking screws allow the chuck to be locked onto the lathe spindle, providing the lathe conforms to DIN800 Standard or Jet Type T38 design (requires 3mm Hex key, not included)
• Reverse direction should only be used when mounted directly onto an M33 x 3.5 spindle thread, and should not be used in reverse when using a thread adapter

Specifications

In the box

• Standard dovetail jaws
• Wood screw
• T-bar 8mm Square drive for scrolling the jaws
• T-handled hex key 4mm for removing the jaws
