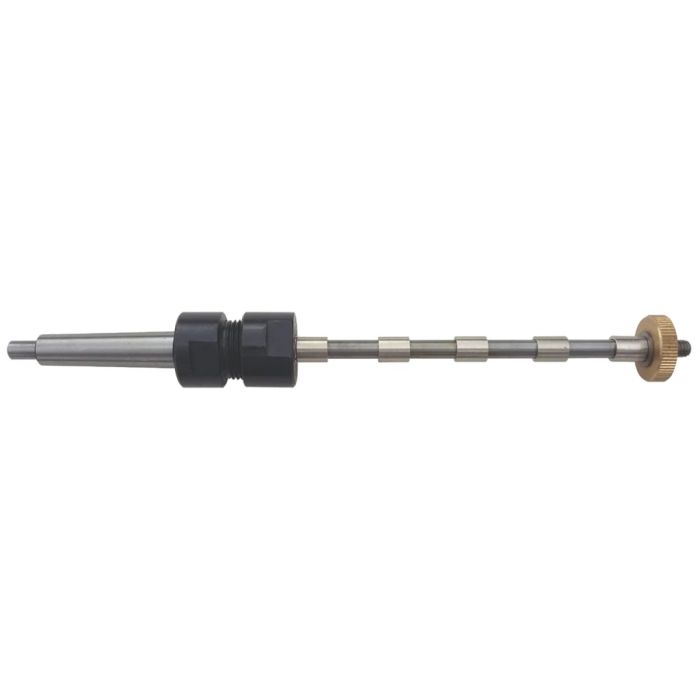

Charnwood (PM1MT) 1 Morse Taper Collet Type Pen Mandrel.
Achieve perfectly centred custom pens with the Charnwood PM1MT 1 Morse Taper collet type pen mandrel. Features an adjustable sliding shaft and 7mm bushes.
- Express delivery express Mon to Fri, order before 14:00
- Click and collect
- 30 day returns
Secure checkout
When you are turning custom pens in the workshop, precision is everything. Wigley DIY stocks the Charnwood PM1MT 1 Morse Taper Collet Type Pen Mandrel to give tradespeople and DIYers a rock-solid setup for accurate turning. This collet type pen mandrel features a collet that secures the mounting shaft, ensuring the shaft is locked and centered in position to guarantee a perfectly centred pen every time. Designed for efficiency, the shaft slides inside the collet so that it can be lengthened or shortened to adapt to the length of the pen to be made. Whether you are knocking out a quick batch of gifts or working on detailed bespoke pieces, this mandrel works seamlessly with a standard revolving tail centre to deliver professional results.
Features
- 1 Morse Taper collet type pen mandrel
- Collet secures mounting shaft, locked and centered for a perfectly centred pen
- Can be used with a standard revolving tail centre
- Shaft slides inside the collet to lengthen or shorten for different pen lengths
- Supplied complete with 7mm bushing set
- Product Code:PM1MT
Specifications
| Product Code | PM1MT |
|---|---|
| Morse Taper | 1MT |
| Type | Colleted |
| Length of shaft | 220mm |
| Diameter of shaft (Suitable for other bushing sets) | 1/4″ (6.35mm) |
| Bushes | 5 x 7mm |
In the box
- Charnwood Pen Mandrel, Collet type, 1MT fitting
- 7mm bushing set (5 x 7mm)
| Brand | Charnwood |
|---|
