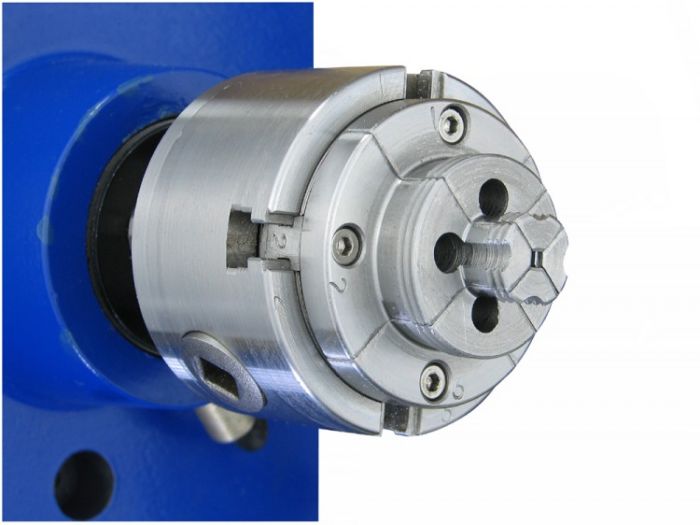

Charnwood (V2SJ) Stepped Jaws for VIPER2 Chuck
Combine standard and pin jaws with the Charnwood V2SJ Stepped Jaws for VIPER2 Chuck. Serrated internal and external edges deliver a secure workpiece grip.
- Express delivery express Mon to Fri, order before 14:00
- Click and collect
- 30 day returns
Secure checkout
Get maximum versatility at the lathe without constantly swapping out your setup. The Charnwood V2SJ Stepped Jaws for VIPER2 Chuck give you the functionality of standard jaws and pin jaws all in one set, saving you time on every project. Whether you are expanding into a recess or contracting around a spigot, the serrated edges both internally and externally deliver a reliable, secure grip on your workpieces.
Designed as a set of 4 optional jaws specifically for the Viper2 geared scroll chuck, these stepped jaws handle a wide range of sizing requirements efficiently. Step 1 projects 24mm from the base of the jaw, while Step 2 projects 12mm, giving you clear clearance and precise control for intricate turning tasks in the workshop.
Features
- Set of 4 optional jaws for our Viper2 geared scroll chuck
- Serrated edge both internally and externally
- Combines standard sized jaws and pin jaws for great flexibility
Specifications
| Part Name | V2SJ Stepped Jaws for Viper2 Chuck |
|---|---|
| Step 1 Expansion | 18mm to 42mm |
| Step 2 Expansion | 36mm to 60mm |
| Contraction Range | 24mm to 0mm |
| Step 1 Projection | 24mm from the base of the jaw |
| Step 2 Projection | 12mm |
| Brand | Charnwood |
|---|
