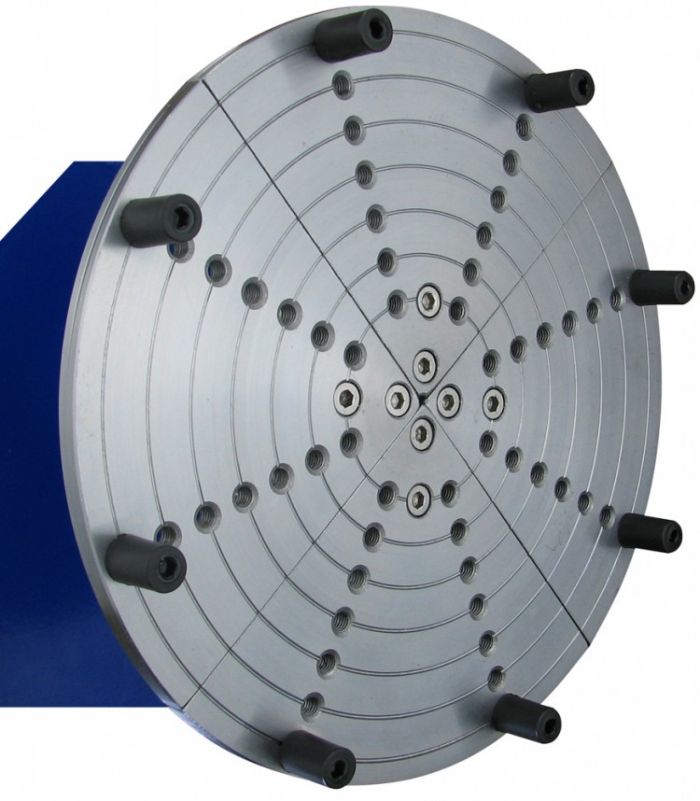

Charnwood (V3FJ10) Bowl Reversing Jaws 10" Diameter for Viper3 Chuck

V3FJ10 Bowl Reversing Jaws 10" Diameter for Viper3 Chuck

Bowl Reversing Jaws 10" Diameter for Viper3 Chuck.

Bowl reversing jaws, also known as Cole jaws or Flat jaws are most commonly used for remounting finished bowls to re-shape the outside or to remove unwanted spigots, recesses or jaw marks.

The outside edge of the jaws are 210mm diameter when closed, 245mm diameter when opened. The work piece is held in place by 8 rubber coated fixings. They can be fitted in 7 different positions, in 12mm intervals, depending on the diameter required. A chuck with minimum Jaw travel of 24mm is therefore required to use these jaws.

For bowl diameters from 47mm up to 225mm.
Please note max. rpm 600.

Supplied with 2 sets of rubber coated fixings;

8 x 10mm diameter x 17mm long
8 x 10mm diameter x 13mm long

Jaws for the Viper3 are compatible with the following chucks:

Charnwood W836 (Requires V3JS jaw screw set)
Vicmark VM100 (Requires V3JS jaw screw set)
Record RP4000
Rutlands Dakota XT700
Warco 9405
Craft Supplies CS400
Fox FX4000
Versachuck (Requires VM100 Jaw Carriers)
