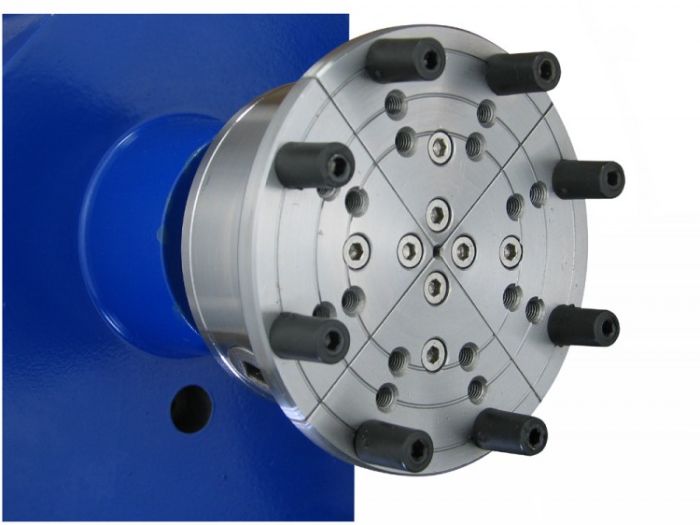

Charnwood (V3FJ5) Bowl Reversing Jaws 5" Diameter for Viper3 Chuck

Stop fighting with stubborn spigots and unsightly chuck marks on your finished turnings. Designed specifically for the Viper3 chuck, these 5" bowl reversing jaws—also known as Cole jaws or flat jaws—give you the precision control needed to remount completed bowls securely. Whether you are reshaping the outside or cleaning up recesses, they hold your workpiece firmly in place using eight rubber-coated fixings adjustable across three different positions at 12mm intervals.

Built for versatility in the workshop, this setup handles bowl diameters ranging from 54mm up to 125mm. They offer a closed diameter of 120mm and expand to 155mm when opened, requiring a chuck with a minimum jaw travel of 24mm. While engineered for the Viper3, they are also compatible with the Charnwood W836 (requiring V3JS jaw screw set), Vicmark VM100 (requiring V3JS jaw screw set), Record RP4000, Rutlands Dakota XT700, Warco 9405, Craft Supplies CS400, Fox FX4000, and the Versachuck (requiring VM100 Jaw Carriers).

Features

• Bowl reversing jaws, also known as Cole jaws or Flat jaws
• Used for remounting finished bowls to re-shape the outside or to remove unwanted spigots, recesses or jaw marks
• Work piece held in place by 8 rubber coated fixings which can be fitted in 3 different positions, in 12mm intervals
• Requires a chuck with minimum jaw travel of 24mm
• Compatible with Charnwood W836 (Requires V3JS jaw screw set), Vicmark VM100 (Requires V3JS jaw screw set), Record RP4000, Rutlands Dakota XT700, Warco 9405, Craft Supplies CS400, Fox FX4000, and Versachuck (Requires VM100 Jaw Carriers)

Specifications

In the box

• 8 x 10mm diameter x 17mm long rubber coated fixings
• 8 x 10mm diameter x 13mm long rubber coated fixings
