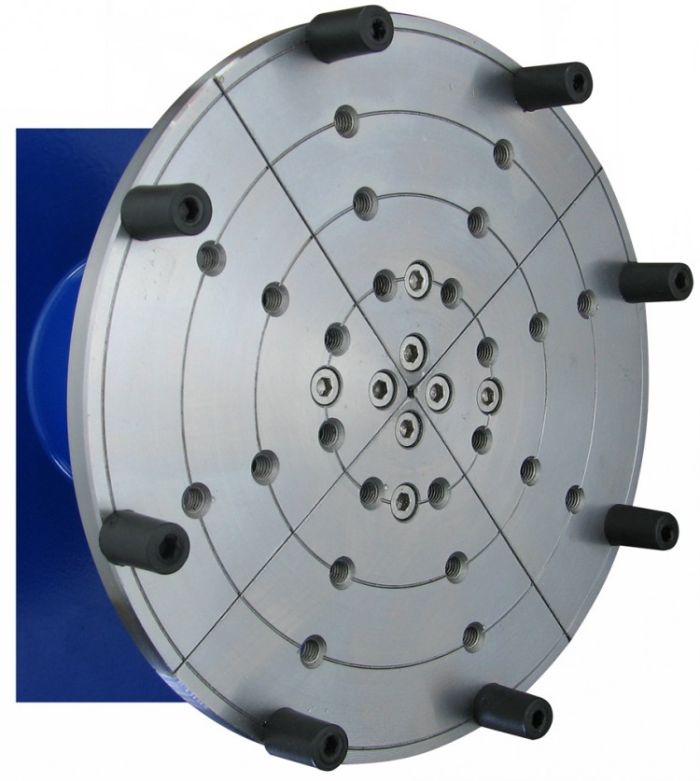

Charnwood (V3FJ8) Bowl Reversing Jaws 8" Diameter for Viper3 Chuck
V3FJ8 Bowl Reversing Jaws 8" Diameter for Viper3 Chuck
Bowl Reversing Jaws 8" Diameter for Viper3 Chuck.
Bowl reversing jaws, also known as Cole jaws or Flat jaws are most commonly used for remounting finished bowls to re-shape the outside or to remove unwanted spigots, recesses or jaw marks.
The outside edge of the jaws are 184mm diameter when closed, 219mm diameter when opened. The work piece is held in place by 8 rubber coated fixings which can be fitted in 4 different positions, in 19mm intervals, depending on the diameter required. A chuck with minimum Jaw travel of 38mm is therefore required to use these jaws.
For bowl diameters from 45mm up to 200mm.
Please note max. rpm 600.
Supplied with 2 sets of rubber coated fixings;
8 x 10mm diameter x 17mm long
8 x 10mm diameter x 13mm long
Jaws for the Viper3 are compatible with the following chucks:
Charnwood W836 (Requires V3JS jaw screw set)
Vicmark VM100 (Requires V3JS jaw screw set)
Record RP4000
Rutlands Dakota XT700
Warco 9405
Craft Supplies CS400
Fox FX4000
Versachuck (Requires VM100 Jaw Carriers)
- Express delivery express Mon to Fri, order before 14:00
- Click and collect
- 30 day returns
Secure checkout
Finish your turned bowls to a professional standard with the Charnwood V3FJ8 Bowl Reversing Jaws 8" Diameter for Viper3 Chuck. Also known as Cole jaws or flat jaws, these versatile attachments are essential for remounting finished bowls to refine the outside shape or clean up unwanted spigots, recesses, and stubborn jaw marks. Designed for bowl diameters ranging from 45mm up to 200mm, they securely grip your workpiece using rubber coated fixings.
Compatible with a wide range of popular chuck systems, these jaws require a chuck with a minimum jaw travel of 38mm. The outside edge measures 184mm diameter when closed and expands to 219mm diameter when opened, operating at a maximum rpm of 600 for safe, controlled woodturning.
Features
- Bowl reversing jaws, also known as Cole jaws or Flat jaws
- Used for remounting finished bowls to re-shape the outside or remove unwanted spigots, recesses, or jaw marks
- Work piece is held in place by 8 rubber coated fixings
- Fixings can be fitted in 4 different positions, in 19mm intervals
- Compatible with Charnwood W836 (Requires V3JS jaw screw set)
- Compatible with Vicmark VM100 (Requires V3JS jaw screw set)
- Compatible with Record RP4000
- Compatible with Rutlands Dakota XT700
- Compatible with Warco 9405
- Compatible with Craft Supplies CS400
- Compatible with Fox FX4000
- Compatible with Versachuck (Requires VM100 Jaw Carriers)
Specifications
| Part Name | V3FJ8 Bowl Reversing Jaws 8" Diameter for Viper3 Chuck |
|---|---|
| SKU | 5060281697691 |
| Diameter Closed | 184mm |
| Diameter Opened | 219mm |
| Minimum Jaw Travel Required | 38mm |
| Bowl Diameter Capacity | 45mm up to 200mm |
| Maximum RPM | 600 |
In the box
- 8 x 10mm diameter x 17mm long rubber coated fixings
- 8 x 10mm diameter x 13mm long rubber coated fixings
| Brand | Charnwood |
|---|
