Charnwood (V3SJ) Stepped Jaws for Viper3 Chuck
Upgrade your Viper3 lathe chuck with Charnwood V3SJ stepped jaws. Dual internal and external serrated edges deliver secure grip across multiple sizes.
- Express delivery express Mon to Fri, order before 14:00
- Click and collect
- 30 day returns
Secure checkout

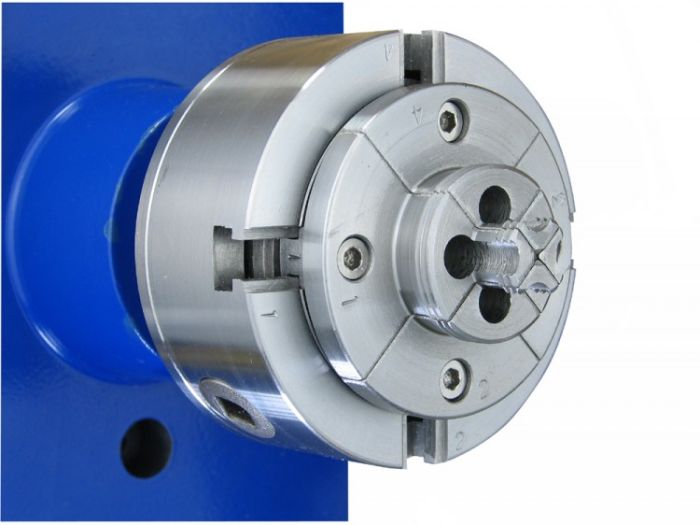

Stop wasting time swapping out your lathe setup mid-project. These versatile stepped jaws give your Viper3 geared scroll chuck the flexibility to handle multiple holding methods with a single set, combining standard sizes and pin jaws in one robust accessory. Designed to project 24mm from the base plate, they feature serrated edges both internally and externally to give you a secure grip on your workpiece when it matters most.
Whether you are expanding into a recess or gripping a spigot, you get dependable performance across a wide working range. Plus, they are fully compatible with a huge variety of alternative chucks including the Charnwood W836, Vicmark VM100, Record RP4000, Rutlands Dakota XT700, Warco 9405, Craft Supplies CS400, and Fox FX4000.
Features
- Set of 4 optional jaws for our Viper3 geared scroll chuck
- Serrated edge both internally and externally for a secure grip
- Combines standard sized jaws and pin jaws for great flexibility
- Jaws project 24mm from base plate
- Compatible with Charnwood W836 (Requires V3JS jaw screw set)
- Compatible with Vicmark VM100 (Requires V3JS jaw screw set)
- Compatible with Record RP4000
- Compatible with Rutlands Dakota XT700
- Compatible with Warco 9405
- Compatible with Craft Supplies CS400
- Compatible with Fox FX4000
Specifications
| Product Name | V3SJ Stepped Jaws for Viper3 Chuck |
|---|---|
| SKU | 5060281697752 |
| Brand | Charnwood |
| Step 1 Expansion | 19mm to 54mm |
| Step 2 Expansion | 38mm to 73mm |
| Contraction Range | 38mm to 3mm |
| Jaw Projection | 24mm |
In the box
- Set of 4 optional jaws
| Brand | Charnwood |
|---|
