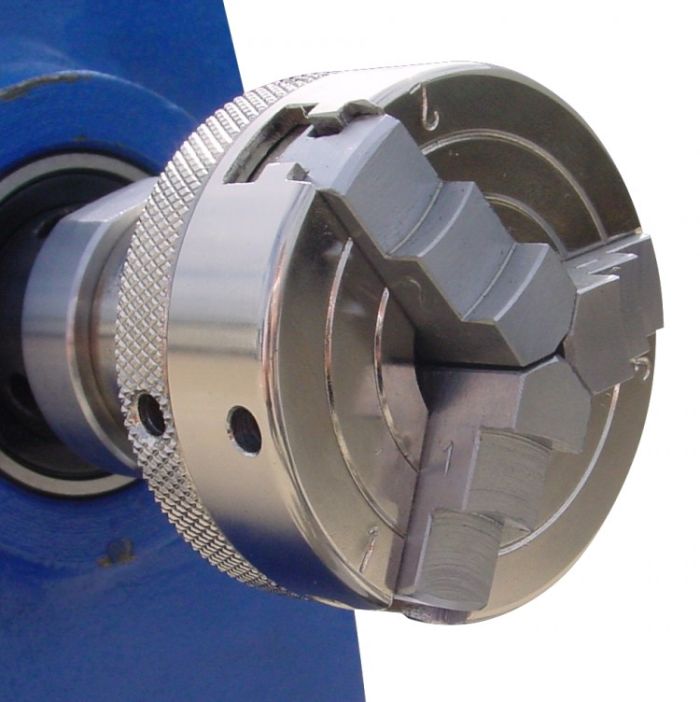

Charnwood (W810) 2'' Diameter 3 Jaw Lever Scroll Chuck
W810 W810 2'' Diameter, 3 Jaw, Lever Scroll Chuck
A light weight, low cost, mini lathe chuck ideal for lathes with smaller motors.
Fitted with 3 jaws, which are stepped on the outside, to give a powerful grip on smaller work pieces. The jaws are adjusted using two levers, which are supplied as standard.
The jaws on this chuck are reversible to futher expand the range of pieces it can hold. When the jaws are reversed the steps are on the inside.
The chuck fits directly onto a spindle thread of 1" x 8tpi
Specification
Chuck Body Diameter 50mm
Standard Jaw Expands from 10mm to 66mm
Standard Jaw Contracts from 30mm to 3mm
Reversed Jaw Expands from 55mm to 80mm
Reversed Jaw Contracts from 60mm to 20mm
Thread Size 1" x 8tpi
Weight 450g
Rating Hobby
Warranty 1 Year
Please note: When reversing the jaws you need to swap over the number 1 and number 3 jaws before re-fitting them.
Optional inserts are available to mount this chuck onto a lathe with either 3/4" x 16tpi or M33 x 3.5 thread size.
- Express delivery express Mon to Fri, order before 14:00
- Click and collect
- 30 day returns
Secure checkout
Upgrade your mini lathe setup with the Charnwood W810 2'' Diameter 3 Jaw Lever Scroll Chuck, available now at Wigley DIY. Designed specifically for smaller-motor lathes, this lightweight and low-cost accessory delivers a powerful grip on your smaller workpieces without straining your equipment. Whether you are turning intricate hobby projects or tackling detailed workshop tasks, this versatile 450g chuck provides reliable performance backed by a 1 year warranty.
Adjustment is quick and secure using the two supplied levers, while the reversible jaws easily adapt to your holding needs. The direct fit on a 1" x 8tpi spindle thread gets you working straight away, with optional inserts available for 3/4" x 16tpi or M33 x 3.5 thread sizes.
Features
- Lightweight, low cost, mini lathe chuck ideal for lathes with smaller motors
- Fitted with 3 jaws, stepped on the outside for a powerful grip on smaller work pieces
- Jaws adjusted using two levers, supplied as standard
- Reversible jaws to further expand the range of pieces it can hold, with steps on the inside when reversed
- Fits directly onto a spindle thread of 1" x 8tpi
- Optional inserts available to mount this chuck onto a lathe with either 3/4" x 16tpi or M33 x 3.5 thread size
- Please note: When reversing the jaws you need to swap over the number 1 and number 3 jaws before re-fitting them
Specifications
| Chuck Body Diameter | 50mm |
|---|---|
| Standard Jaw Expands from | 10mm to 66mm |
| Standard Jaw Contracts from | 30mm to 3mm |
| Reversed Jaw Expands from | 55mm to 80mm |
| Reversed Jaw Contracts from | 60mm to 20mm |
| Thread Size | 1" x 8tpi |
| Weight | 450g |
| Rating | Hobby |
| Warranty | 1 Year |
In the box
- Charnwood W810 2'' Diameter 3 Jaw Lever Scroll Chuck
- Two levers
| Brand | Charnwood |
|---|
