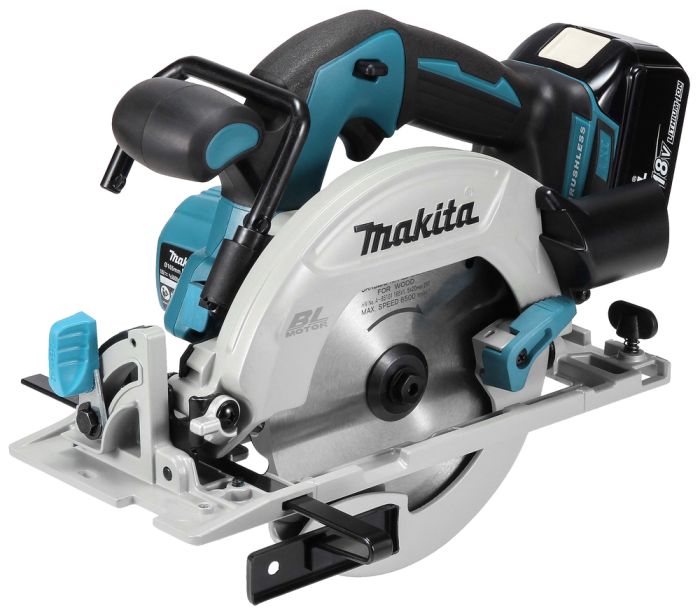

MAKITA DHS680Z 18V Circular Saw LXT - Body Only
Shop the Makita DHS680Z 18V LXT brushless circular saw body only. Delivers 5000 min⁻¹ speed, 57 mm max cutting depth, LED light and dust extraction.
- Express delivery express Mon to Fri, order before 14:00
- Click and collect
- 30 day returns
Secure checkout
Upgrade your kit with the Wigley DIY choice for precision timber cutting. The Makita DHS680Z 18V Circular Saw LXT - Body Only is a compact, professional-grade cordless saw built to handle demanding jobs on site or in the workshop. Driven by an efficient brushless motor and powered by an 18 V Li-ion battery, it delivers a no load speed of 5000 min⁻¹ and a max output power of 680 W. Designed to accept 165 mm diameter blades with a 20 mm bore size, it achieves a max. cutting depth of 57 mm at 90°, 41 mm at 45°, and 37 mm at 50°, with a max bevel range left of 0 / 50 º and capacity 45° of 41 mm.
Tool only - Battery not included. You get total control thanks to front-guided ventilation that keeps your cut line clear, an integrated LED light to illuminate the work site, and a rubber-coated handle for a firm grip. Safety features include a battery protection system that automatically shuts off power when the battery level is low, alongside a removable dust extraction connection. Compatible with a guide rule, this tool measures 350 x 170 x 238 mm and weighs 3.0 - 3.3 kg with battery.
Features
- LED light illuminates the work site
- Battery protection system automatically shuts off power when the battery level is low
- The rubber coating on the handle ensures a firm working grip
- Removable dust extraction connection
Specifications
| Nominal Battery Voltage | 18 V |
|---|---|
| Max. Cutting Depth at 90° | 57 mm |
| Max. Cutting Depth at 45° | 41 mm |
| Max. Cutting Depth at 50° | 37 mm |
| Max. Bevel Range (Left) | 0 / 50 º |
| No load speed | 5000 min⁻¹ |
| Sound Power Level (LWA) | 105 dB(A) |
| Sound Pressure Level (LpA) | 94 dB(A) |
| Noise Uncertainty (K Factor) | 3 dB(A) |
| Vibration Level (3 axes) | ≤ 2.5 m/s² |
| Vibration Uncertainty (K Factor) | 1.5 m/s² |
| Tool weight with battery | 3.0 - 3.3 kg |
| Product Dimensions (L x W x H) | 350 x 170 x 238 mm |
| Brushless Motor | Brushless Motor |
| Battery Chemistry (Ni-Cd / Ni-MH / Li-ion) | Li-ion |
| Max Output Power | 680 W |
| Capacity 45° | 41 mm |
| Blade Diameter | 165 mm |
| Bore Size (Arbor Diameter) | 20 mm |
| Vacuum cleaner connection Ø in / out | 35/40 mm |
In the box
- Parallel Guide 164095-8
- Dust Nozzle 35 / 40 Mm 196961-1
| Brand | Makita |
|---|
